Champion 12000lb Winch

Features:

• Rated line pull: 5,443 kg (12,000 lb.) single line pull
• 6 HP, 12 V motor
• Free spooling clutch
• Planetary gear system
• Gear ratio: 216:1
• Automatic braking action
• 9.0 mm (11/32 in.) synthetic rope, 26 m (85 ft.) long
• Power in/out, winch pulls in both directions

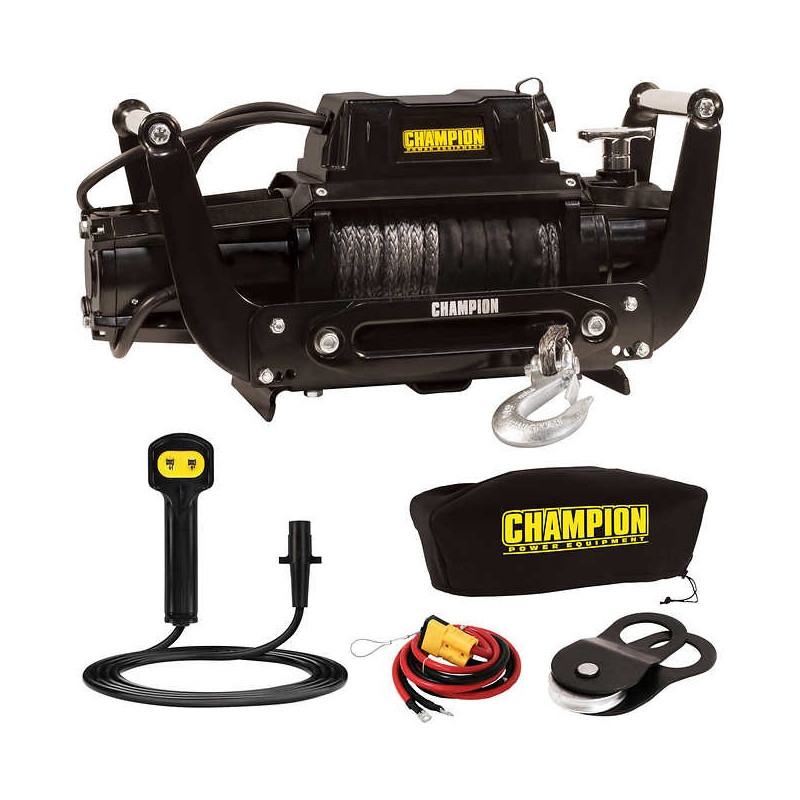

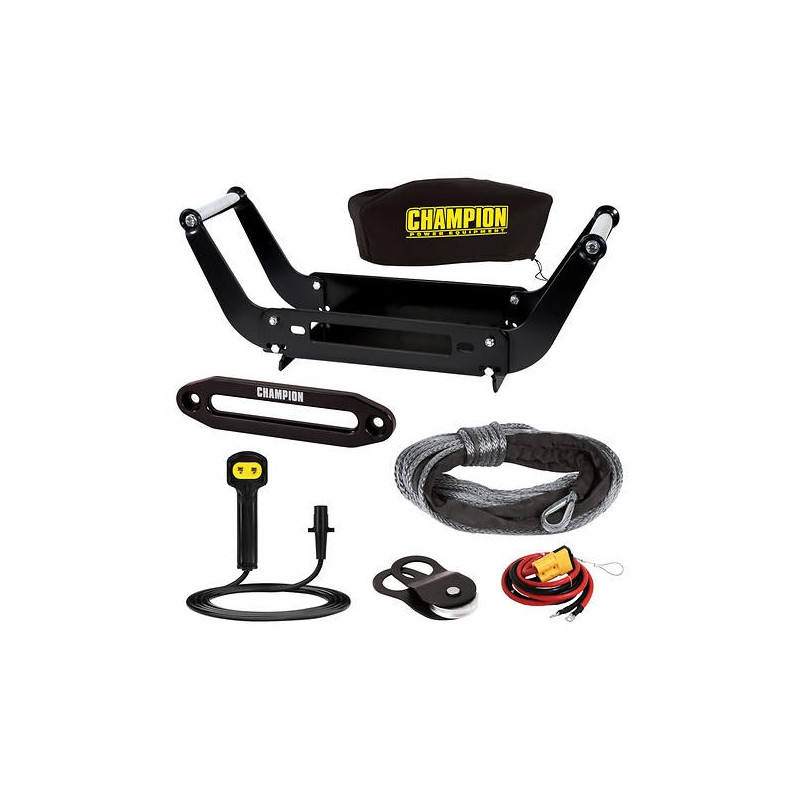

Includes:

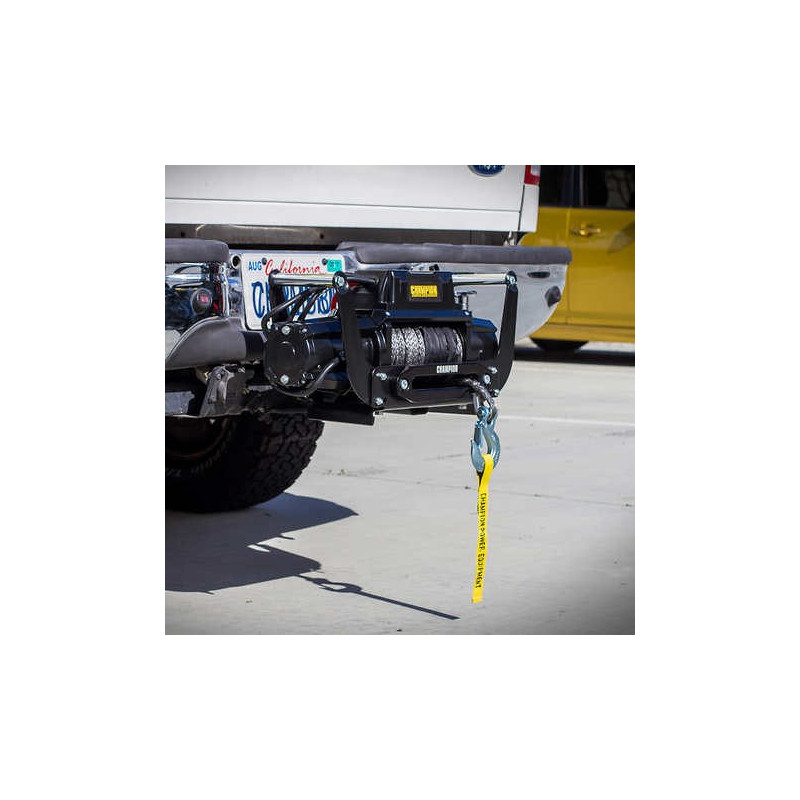

• Speed mount 5 cm (2-in.) hitch adapter with handles
• 26 m (85 ft.) synthetic rope with hawse fairlead
• Weather-resistant neoprene cover
• Handheld quick-connect remote control
• Snatch block
• 1.8 m (6-ft.) battery lead cables

Winch specifications:

• Drum size (D x L): 6.3 cm x 22.5 cm (2.5 in. x 8.8 in.)
• Mounting bolt pattern: 25.4 cm x 11.4 cm (10 in. x 4.5 in.)
• Overall dimensions (L x W x H): 56.6 cm x 14.8 cm x 25.7 cm (22.3 in. x 5.8 in. x 10.1 in.)
